T-5

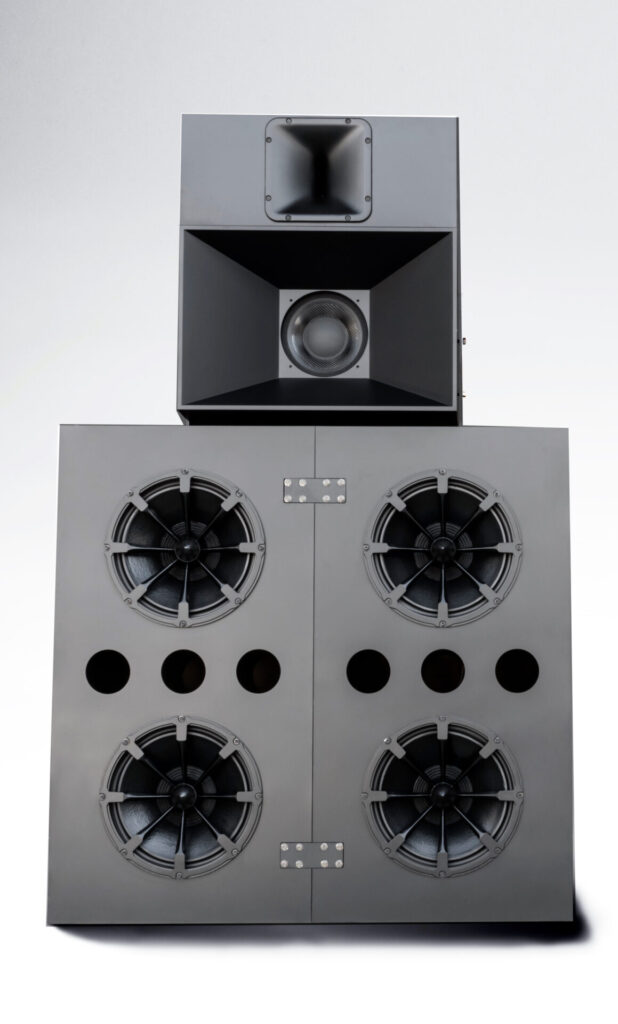

managerT-5 Large Venue 3way Main System
- HF:1.4" beryllium diaphragm driver
- MF:10" Carbon Fiber Cone Driver
- LF:15" Radial Chassis Cone Driver
- Extended high frequency reproduction
- Natural and clear mid range reproduction
- Extended low frequency reproduction
- The ultimate 3way main speaker.
Specifications
System |
Vented type 3way Speaker System |
|---|---|
Input Power |
LF:1600W（AES)/3200W（Program) MF:400W(AES)/800W(Program) LF:90W(AES)/180W(Program) |
Sensitivity(1m/1w) |
LF：100dB MF：102dB HF：112dB |
Impedance |
LF：4Ω×2 MF：8Ω HF：8Ω |
Max SPL(＠1m) |
LF:135dB MF:134dB HF:134.55dB |
Frequency Range |
20〜20kHz |
Xover |
500/2kHz |
Cabinet |
18mm thick MDF |
Dimensions(H×W×D) |
2020×1250×750mm |
