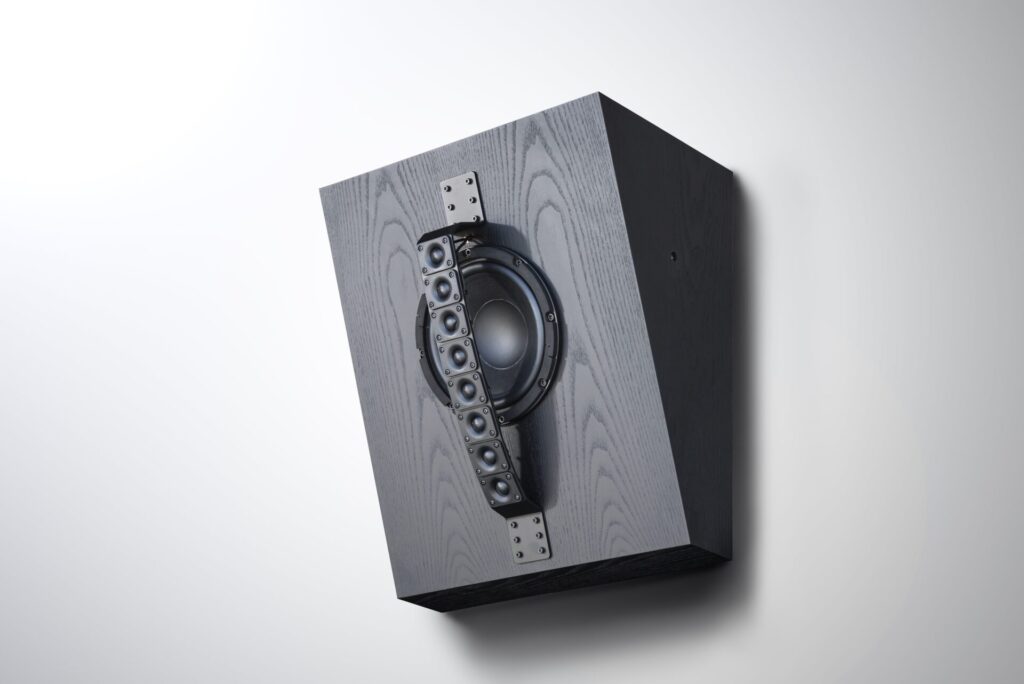

TE-1 Line Array 2way Surround System
- Coaxial Line Array
- HF: 0.7" Single Dome Array
- LF: Ultra Low Distortion 8” Driver
- Uniform Coverage from Close to Far Distances
- Extended High Frequency Reproduction
- Extended Low Frequency Reproduction
- The Ultimate Surround Speaker
Specifications
System |
Vented Coaxial Line Array 2way Speaker System |
|---|---|
Input Power |
LF:300W（AES)600W（Program) HF:90W(AES)/180W(Program) |
Sensitivity(1m/1w) |
LF：100dB MF：102dB HF：112dB |
Impedance |
LF：8Ω HF：4Ω |
Max SPL(＠1m) |
LF:124.79dB HF:123.56dB |
Frequency Range |
50〜20kHz |
Xover |
4kHz |
Cabinet |
18mm thick MDF |
Dimensions(H×W×D) |
480×400×282mm |
