H-1
design

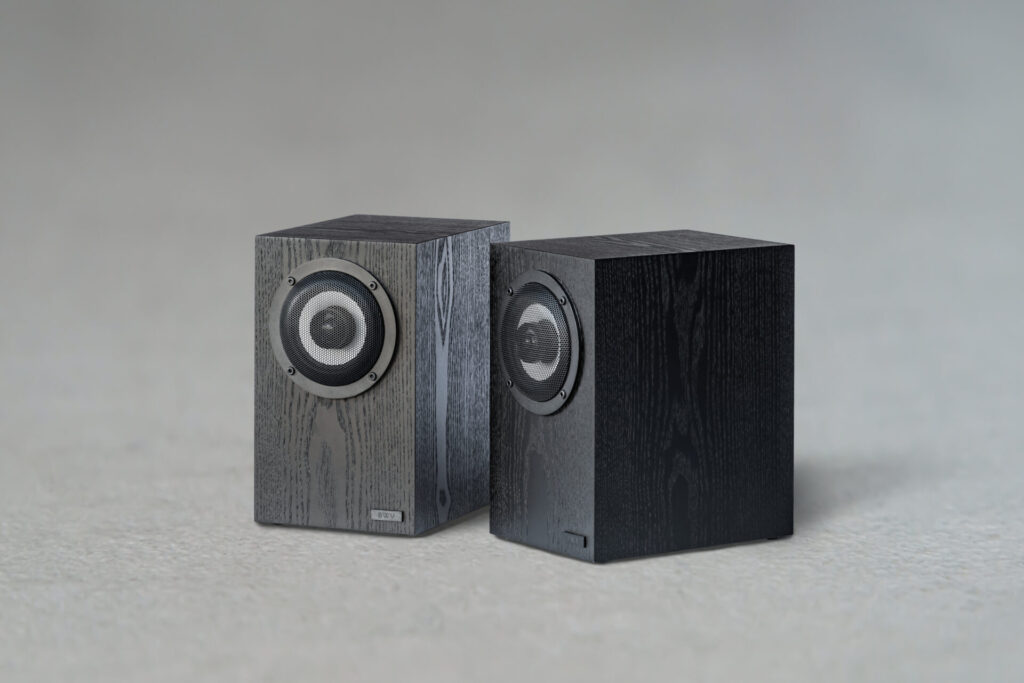

H-1 Small 2Way System
- HF: 1" Soft Dome with Ring Phase Plug
- LF: 4" Aluminum Cone Driver
- Extended high frequency reproduction
- Natural and clear mid low frequency reproduction
- The ultimate 2way system
Specification
System |
Vented 2Way Speaker System |
|---|---|
Input Power |
40W(AES)/60W(Program) |
Sensitivity(1m/1w) |
81dB |
Impedance |
4Ω |
Frequency Range |
55〜20kHz |
Xover |
3.3kHz |
Cabinet |
MDF + Ash Wood |
Dimensions(H×W×D) |
258×160×255mm |
Weight |
2.5kg(1unit) |
図⾯
H-1の図⾯をご覧いただけます。
マニュアル
H-1のマニュアルをご覧いただけます。
